The RADIUS module — labelled Radius Logins in the admin — lets Sign In delegate guest authentication to an external RADIUS server that already holds the credentials. Sign In is the RADIUS client: when a guest enters credentials on the Captive Portal, Sign In forwards them to the configured RADIUS server and grants access if the server accepts. Typical use cases:
  • Library systems. Visitors sign in with their library card credentials against the library system’s RADIUS server.
  • Organization visitor systems. A customer runs a visitor-management system with a RADIUS front-end; Sign In calls it so visitors can use the same credentials they were issued elsewhere.
  • Any third-party credential source reachable over RADIUS — no need for Sign In to own or replicate those accounts.

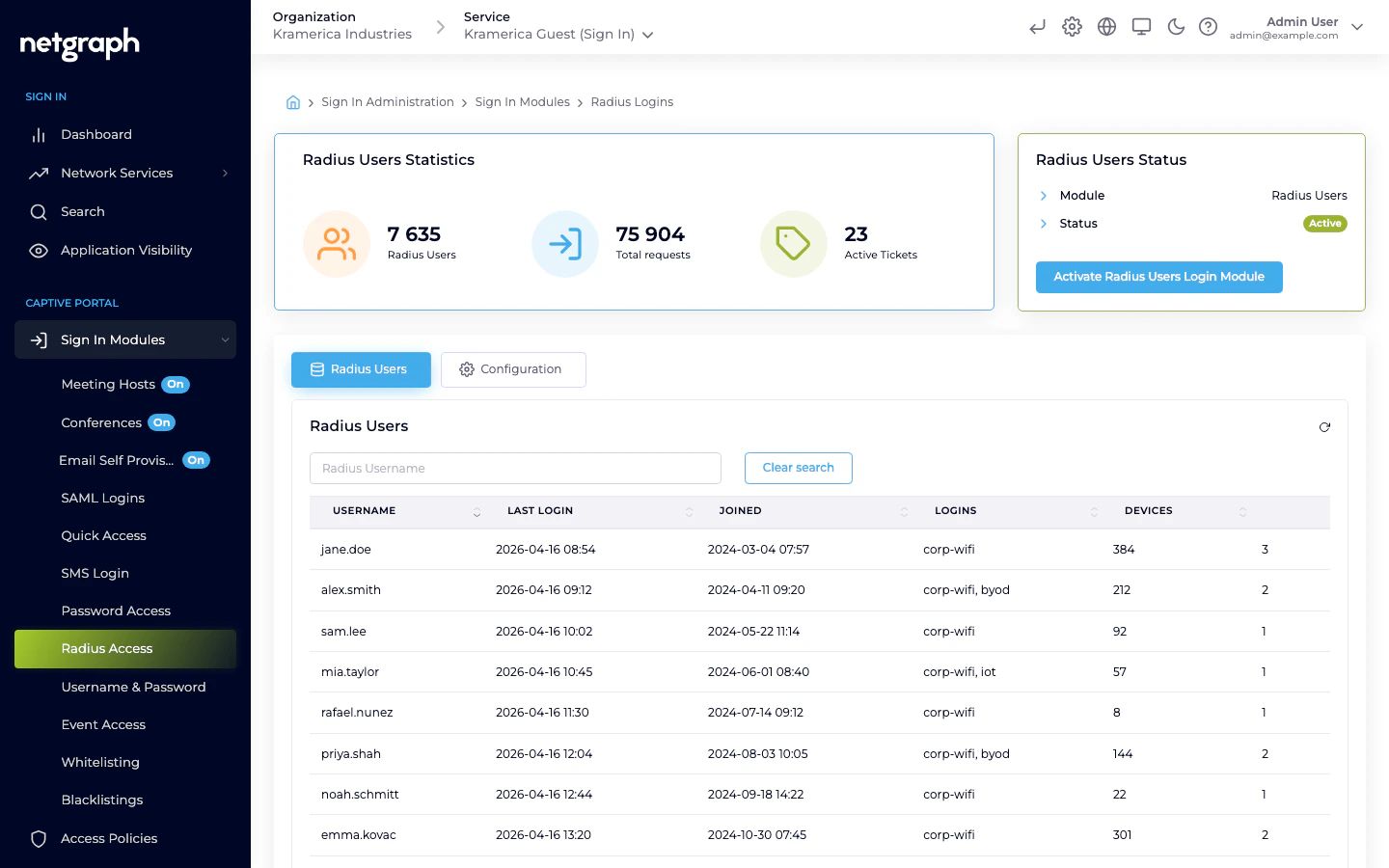

Radius Logins module admin page

​
How a guest signs in

  1. The guest picks RADIUS on the Captive Portal.
  2. They enter the username and password issued by the external system (library card number, visitor code, etc.).
  3. Sign In sends an Access-Request to the configured external RADIUS server.
  4. On Access-Accept, the guest is granted access per the applicable Access Policy.

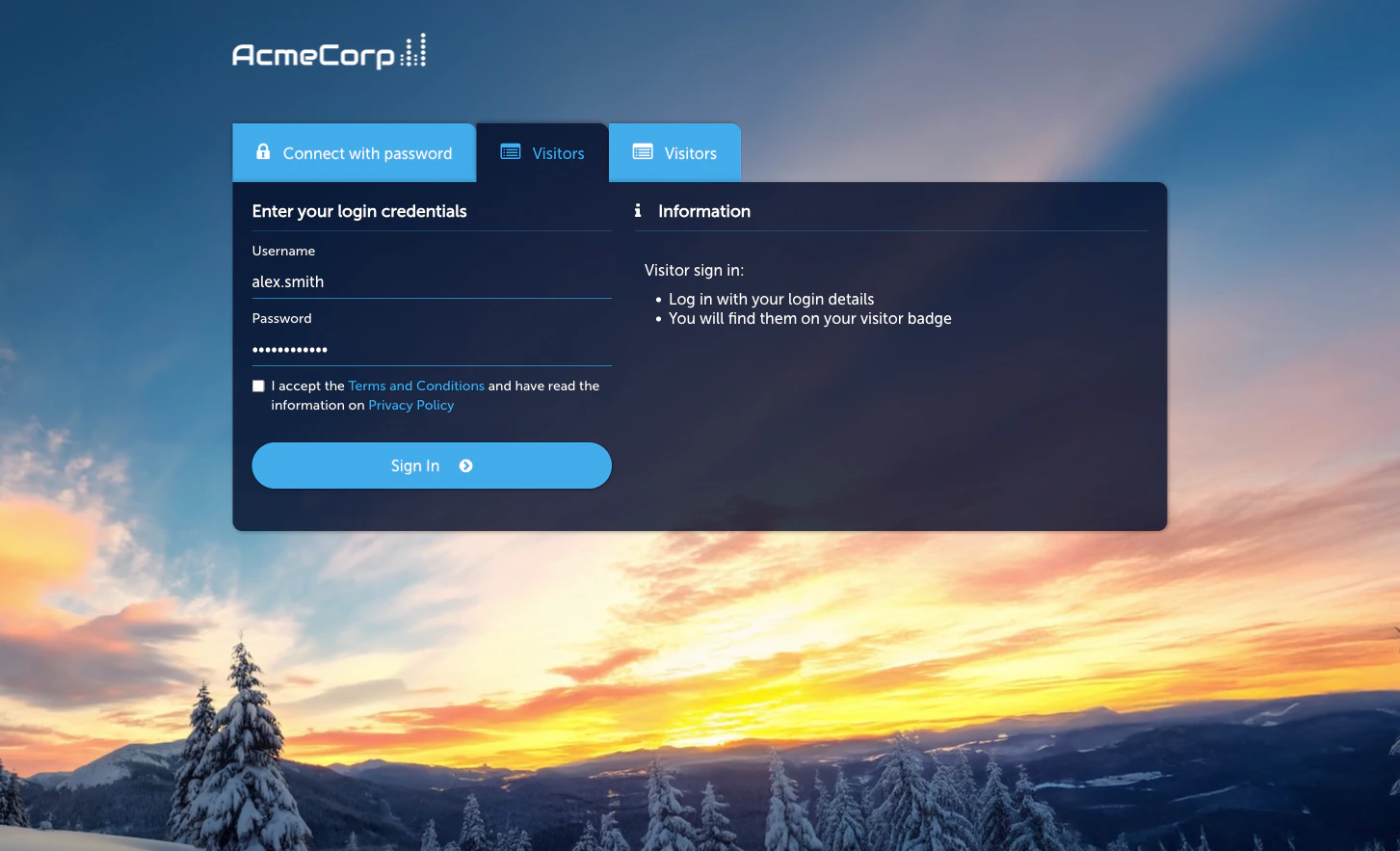

RADIUS login input on the Captive Portal

​
Prerequisites

  • A reachable external RADIUS server and a shared secret.
  • Firewall rules permitting Sign In’s outbound RADIUS traffic to reach the server.
  • Agreement with the RADIUS server’s operator that Sign In is authorised to submit authentication requests on behalf of guests.

​
Activate the module

1

Open the module

Go to Sign In Modules → Radius Access.
2

Configure the external RADIUS server

On the Configuration tab’s Radius Connection sub-tab, set the server host, port, shared secret, and timeout / retry behaviour.
3

Set session length and redirect

On the Session Length & Redirect sub-tab, set how long a successful RADIUS sign-in grants access and where the guest lands afterwards.
4

Activate

Click Activate Radius Users Login Module.
5

Test

Sign in with a known-good account from the external system. Watch the external RADIUS server’s logs to confirm the request arrived and was accepted.

​
Managing RADIUS guests

The main tab lists RADIUS-authenticated guests by username with last login, total logins, and devices.
  • Filter by username.
  • Revoke a guest — the next sign-in requires a fresh RADIUS round-trip against the external server.

​
Access Policies

RADIUS is not gated by an Access Policy — if the module is active at Context level, it’s available to any guest who reaches the Captive Portal. Session length and redirect are controlled on the module’s Session Length & Redirect Configuration sub-tab.

​
Compared to SAML

FeatureRADIUSSAML SSO
Identity backendExternal RADIUS serverSAML IdP
Browser round-trip requiredNoYes
Password handlingProxied via Sign In to the external serverNever touches Sign In — IdP handles
Typical setup effortLow (shared secret)Medium (SP registration + attribute mapping)
Best forLibrary systems, visitor systems, legacy credential storesCorporate BYOD with modern IdPs

SAML SSO

Federated BYOD sign-in — credentials never pass through Sign In.

Username & Password

Accounts managed inside Sign In, without an external identity source.
